UK Steel Mesh Types Compared: A142 vs A193 vs A252 vs A393
Last updated:
Compare UK steel mesh types A142, A193, A252, and A393, wire diameter, weight, applications, and which mesh to use for garages, driveways, and foundations.
What Is the Difference Between A142 and A193 Reinforcement?
A193 contains 36% more steel (193 mm²/m vs 142 mm²/m) and is the NHBC-mandated minimum for slabs carrying vehicle traffic. A142 is strictly for pedestrian-only loads like paths and patios.
Technical Specifications

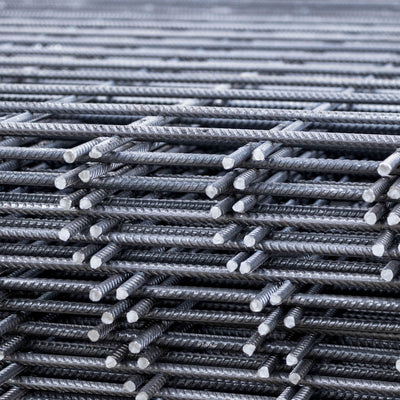

- A142 Mesh: 6mm wire, 2.22 kg/m² mass, ~25.5 kg per standard sheet.
- A193 Mesh: 7mm wire, 3.02 kg/m² mass, ~34.8 kg per standard sheet.
- Common Specs: Both use 200×200mm pitch, B500A grade steel, manufactured to BS 4483:2025.
Application Rules
- Use A142 For: Garden paths, patios, shed bases (pedestrian traffic only, 75–100mm concrete depth).
- Use A193 For: Domestic garages, light car driveways (vehicle traffic up to 2 tonnes, 100–150mm concrete depth).
- When NOT to use A142: Never use A142 for a driveway or garage floor. It lacks the cross-sectional area for adequate crack control under wheel loads.
Pro Tip: Upgrading from A142 to A193 costs only a few pounds more per sheet: £18.90 against £28.34 for a 3.6 × 2 m sheet. A common mistake is specifying A142 in a garage to save a little on materials, which often leads to far larger repair costs when the slab cracks under vehicle weight.
Which Mesh Should I Use for a Garage Floor?
A193 mesh is the minimum standard for domestic garage floors carrying standard cars. For garages holding heavier vehicles (SUVs, vans) or double garages, upgrade to A252.
Technical Specifications
- A193 Mesh: 7mm wire, 193 mm²/m, 3.02 kg/m².
- A252 Mesh: 8mm wire, 252 mm²/m, 3.95 kg/m².
Application Rules
- Slab Thickness: 100–150mm for standard domestic garages.
- Concrete Cover: Minimum 40mm cover (BS 8500 standard for ground-contact slabs). Increase to 50mm for aggressive ground conditions.
- Positioning: Place in the lower third of ground-bearing slabs.
Pro Tip: Install mesh using 40mm or 50mm plastic bar chairs positioned every 600–800mm. Never lay the mesh on the sub-base and try to "pull it up" during the pour; it will sink back down and offer zero structural benefit.
What Is the Difference Between A252 and A393 Mesh?
A252 (8mm wire) is heavy-duty residential mesh used for extensions and HGV-capable driveways. A393 (10mm wire) is the heaviest standard mesh, specified strictly for commercial foundations, agricultural yards, and heavy industrial slabs.
Technical Specifications
- A252 Mesh: 8mm wire, 3.95 kg/m² mass, ~45.5 kg per standard sheet (4.8m × 2.4m).
- A393 Mesh: 10mm wire, 6.16 kg/m² mass, ~71.0 kg per standard sheet (4.8m × 2.4m).
Application Rules
- Use A252 For: House extensions, heavy residential driveways, 150mm+ slab depths.
- Use A393 For: Industrial yards, heavily loaded commercial slabs, 150–200mm+ slab depths.
- Handling Requirement: A393 requires mechanical lifting (HIAB or forklift). A252 requires a strict two-person manual lift or mechanical assistance.
Pro Tip: Most domestic building sites lack lifting equipment. If your engineer specifies A393, communicate with your supplier immediately to book a HIAB offload delivery, otherwise you will not be able to get the 71kg sheets off the flatbed safely.
What Mesh Do I Need for a Driveway UK?
A193 mesh is required for standard car driveways. If the driveway will see delivery vans, skip lorries, or refuse trucks, you must upgrade to A252 mesh. Never use A142 for a driveway.
Technical Specifications
- Standard Car Driveways: A193 (7mm wire, 193 mm²/m).
- Heavy/Commercial Access Driveways: A252 (8mm wire, 252 mm²/m).
- Standard Sheet Size: 4.8m × 2.4m (covering ~10m² effective area after overlaps).
Application Rules
- Overlap: Minimum 200mm (one full mesh square) on all sheet joints, tied at 400mm intervals.
- Concrete Cover: 40mm minimum clearance from the ground per BS 8500.
- Depth: 100-150mm total concrete depth (C25/30 or C30/37).
Pro Tip: Concrete driveways crack at the sheet joints if not overlapped correctly. Always ensure a minimum 300mm overlap if dealing with soft sub-grades or expected heavy point loads, and tie every intersection along the lap with 16-gauge tying wire.
What Is the Difference Between A-Series and B-Series Reinforcement?
A-series mesh has a square grid with equal steel in both directions, distributing loads evenly. B-series mesh has rectangular grids with thicker wires in one direction, designed specifically for slabs that span in a single direction (like beam-and-block floors).
Technical Specifications
- A-Series (e.g., A193): 7mm wire longitudinal / 7mm wire transverse. 200×200mm pitch.
- B-Series (e.g., B503): 8mm wire longitudinal / 8mm wire transverse, but 100×200mm pitch. Main direction has double the steel area (503 mm²/m main vs 252 mm²/m cross).
Application Rules
- Use A-Series For: Ground-bearing slabs (garages, patios, driveways) where loads transfer strictly into the ground below.
- Use B-Series For: Suspended slabs spanning over voids or between beams (one-way spanning floors).
Pro Tip: B-series mesh is directional. When laying B-series sheets, the heavy main wires must run parallel to the spanning direction shown on the structural engineer's drawings. Laying B-series mesh sideways compromises the entire structural integrity of the suspended floor.
Frequently Asked Questions
Is A142 strong enough for a car?
No. A142 is classified as light-duty mesh for pedestrian traffic only and does not provide sufficient crack control for vehicle loads. It uses 6mm wire with a cross-sectional area of just 142 mm²/m. For any slab carrying vehicles, A193 is the NHBC-recommended minimum.
What mesh do I need for a shed base UK?
A142 mesh is the correct specification for a standard garden shed base. Use it in a 100mm concrete slab on a well-compacted sub-base. A142 uses 6mm wire at 200×200mm spacing, weighs 2.22 kg/m², and provides 142 mm²/m of cross-sectional steel area.
How many sheets of mesh do I need?
Use this formula: area (m²) ÷ 10 × 1.1 = number of sheets. Each standard 4.8m × 2.4m sheet covers 11.52 m² nominally, but effective coverage is approximately 10 m² after accounting for 300mm overlaps. The 1.1 multiplier adds 10% for cutting waste.
Does mesh need to overlap?
Yes. Mesh sheets must overlap by at least one full square, that is 200mm for all A-series mesh at 200×200mm spacing. Overlapping joints should be tied with wire at 400mm intervals to prevent movement during the concrete pour.
What is the minimum concrete cover for mesh?
The minimum concrete cover for mesh in ground-contact slabs is 40mm, as specified in BS 8500. In aggressive ground conditions, such as sites with sulphate-bearing soils or high water tables, the minimum increases to 50mm.
Is mesh better than rebar for a garage slab?
For standard domestic garage slabs, prefabricated mesh (A193 or A252) is typically more cost-effective and easier to install than loose rebar. Mesh arrives pre-welded in standard 4.8m × 2.4m sheets, reducing on-site labour. Rebar requires cutting, bending, and tying to schedule, which is slower and more skilled work.
What BS standard covers steel mesh UK?
BS 4483:2025 is the British Standard for steel fabric (mesh) for the reinforcement of concrete. It specifies requirements for welded steel fabric made from wire or bars, covering A-series (square mesh), B-series (structural mesh), and C-series (long mesh) designations.
